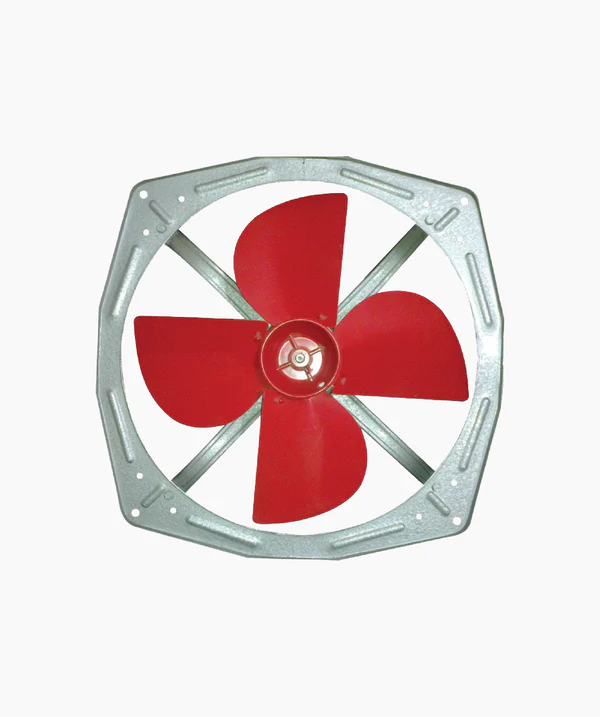

Metal Exhaust Square
- Dynamically balanced impellers for smooth & vibration-free operation.
- Turbo profile blades for higher air delivery & rigid frame with rubber mountings for silent operation.
- Totally enclosed, highly efficient heavy duty motor designed to suit voltage/supply fluctuation.
- Epoxy enamel coating with specially pre-treated components for better resistance to corrosion and acid alkali fumes.
- Size avaliable in 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″ and 24″
- Pressure die casted aluminum rotor mounted on pre-lubricated double ball bearing for maintenance free running.
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Type Blades Sweep Warranty
Capacitor 4 150mm Yes
Capacitor 4 200mm Yes
Capacitor 4 250mm Yes
Capacitor 4 300mm Yes
Capacitor 4 350mm Yes
Capacitor 4 400mm Yes
Capacitor 4 450mm Yes
Capacitor 4 500mm Yes
Capacitor 4 600mm Yes
Technical Specifications
RPM Air Delivery Power Service Value
1350 11 m3/min 35 Watts 11.01 ft3/min/Watt
1350 13 m3/min 40 Watts 12.27 ft3/min/Watt
1350 17 m3/min 50 Watts 12 ft3/min/Watt
1350 21 m3/min 50 Watts 15 ft3/min/Watt
1350 42 m3/min 90 Watts 16.67 ft3/min/Watt
1350 42 m3/min 90 Watts 16.67 ft3/min/Watt
1200 71 m3/min 105 Watts 23.81 ft3/min/Watt
1200 109 m3/min 155 Watts 24.64 ft3/min/Watt
1000 133 m3/min 185 Watts 25.46 ft3/min/Watt
color | Red |
---|---|
Delivery Type | Free Delivery |
Fan Size | 20 |
Model Year | 2025 |
Fan Blades | 6 |
Shipped From | Punjab |
